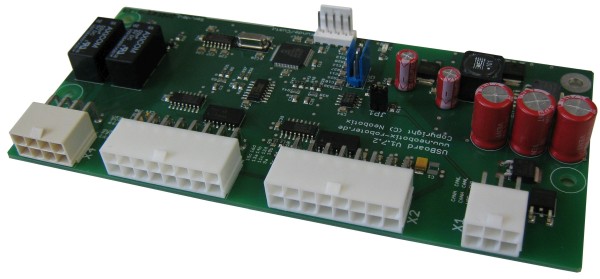

USBoard-USS4
Interface board for 16 Bosch ultrasonic sensors
- Handles up to 16 Bosch ParkPilot USS4 / URF6 / URF7 ultrasonic sensors
- 4 analogue inputs, voltage range 0 - 5 V
- Wide supply voltage range: 9 - 60 V
- Communication interfaces: RS-232, CAN bus
- Graphical configuration interface (Java)
- Free ROS interface
Further information and the operating manual of the USBoard-USS4 can be found in our online documentation.
Full Package
With this package you get all necessary components to evaluate 16 sensors.
- 1 x USBoard-USS4 incl. GUI (Order No. X100)
- 1 x USBoard-USS4 configuration cable
(Order No. X201) - 16 x Ultrasonic sensor Bosch USS4
(Order No. X200) - 1 x Cable set X2 for sensors 1-8 (2 m long)
(Order No. X204) - 1 x Cable set X3 for sensors 9-16 (2 m long)
(Order No. X205) - 16 x Mounting kit for USS4, 0°, 5°, 10°, 15°
(Order No. X207)
Package
X100 USBoard-USS4
Description
for up to 16x USS4 sensors incl. GUI
X200 Ultrasonic sensor
Description
Bosch USS4, radial connector
X201 USBoard-USS4 configuration cable
Description
1 m long
X202 Connector set for USBoard-USS4
X203 Connector set for USS4 sensors
X204 Cable set X2 for USS4 sensors
Description
To connect the sensors 1-8, 2 m long
X205 Cable set X3 for USS4 sensors
Description
To connect the sensors 9-16, 2 m long
X206 Mounting kit for USS4, straight
X207 Mounting kit, angled
Description
0°, 5°, 10°, 15°
